Hydro Cooling H200-M Cluster Support 240 Units WhatsMiner Sealminer VolcMiner
H200-M Cluster is a high-efficiency, skid-mounted 2.4MW hydro cooling system designed for indoor cryptocurrency mining farms. Engineered to support up to 240 units of WhatsMiner, Sealminer, VolcMiner, or Auradine.
$158,000.00
The price of miner changes from time to time. Price may be low or high. Please consult us for the specific price, we will give you the best price in the market.
Due to recent U.S. tariff changes on Chinese products, we offer DDP shipping for Antminer orders (MOQ: 30 pcs) to U.S. buyers. For smaller quantities, please contact our sales team for better options.
Order 2 or more machines to save on shipping costs! Contact our sales team now to secure the best rates.
Facebook
Twitter
LinkedIn
Pinterest
VK
Reddit
- All miner include PSU
- Technical Support
- Low-value Declaration
- Machine detection

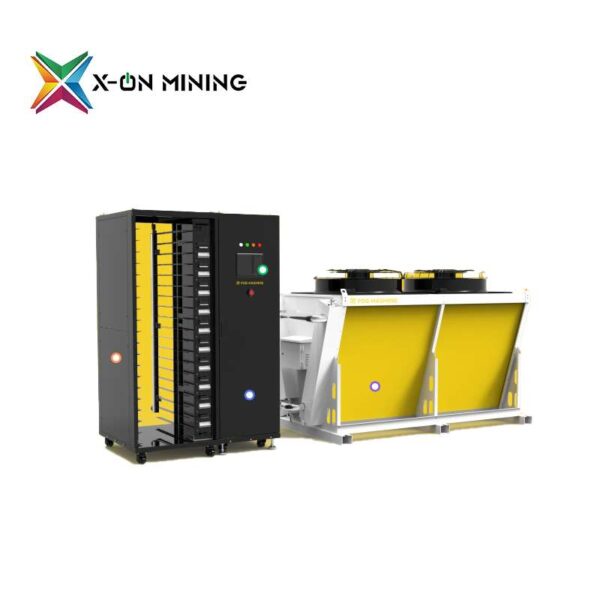

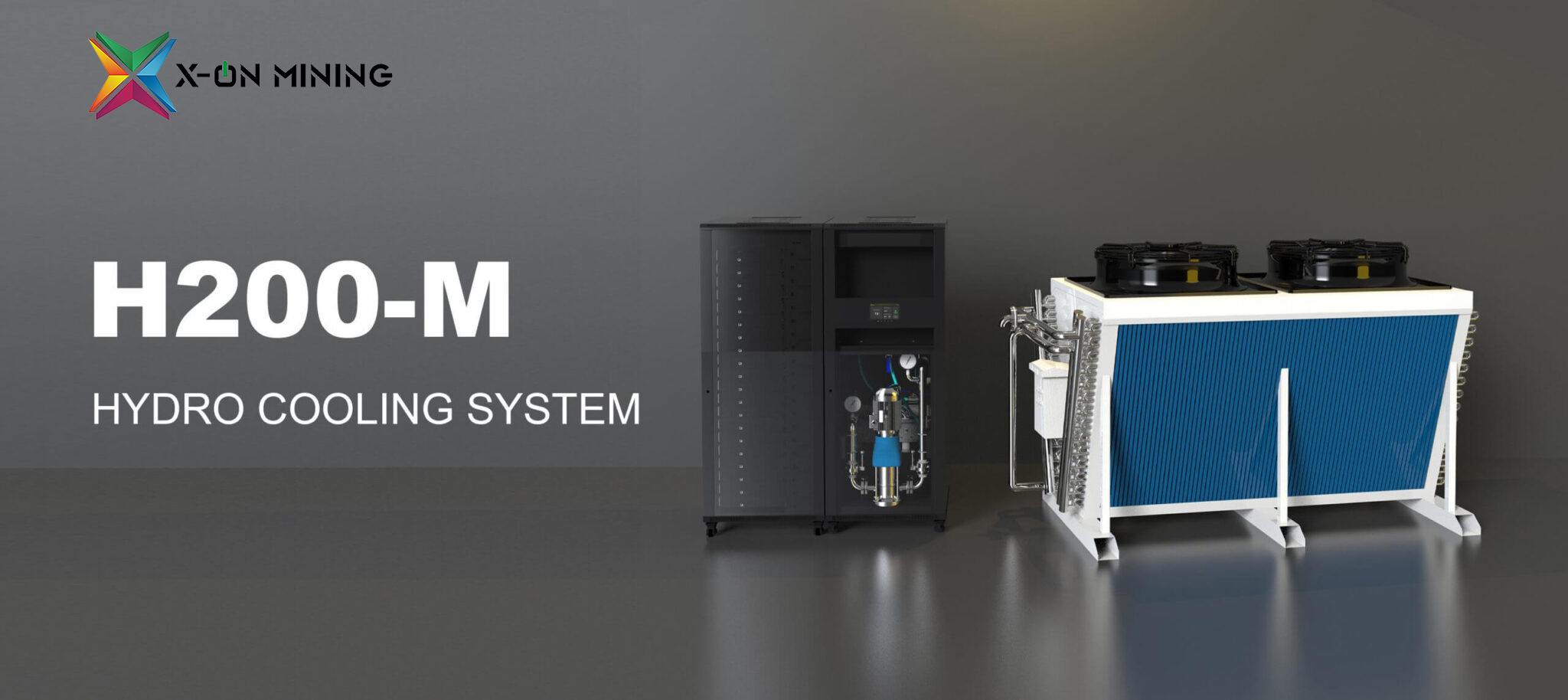

Hydro Cooling H200-M Cluster: Industrial-Grade Mining Infrastructure
(2.4MW Capacity • 240 Miner Support • Heat Reuse Ready)
Advanced hydro cooling 200kW module for Whatsminer, built for simplicity and reliability.
The H200-M Cluster delivers enterprise-grade thermal management with:
✅ 2.4MW Cooling Capacity – Supports 240x high-power ASICs (S21 Hydro, M60S, etc.)
✅ Skid-Mounted Design – Deploys in <72 hours vs. months for traditional builds
✅ Heat Recovery Interfaces – 65°C output for district heating/greenhouses
✅ Smart Monitoring – Real-time alerts via web/mobile
Why Farms Choose H200-M Cluster?
1. Plug-and-Play Efficiency
-
Pre-assembled skids – No welding/plumbing
-
Auto-leak detection – Zero downtime
2. Heat Monetization
-
Sell excess heat to:
-
Aquaculture farms (shrimp, fish)
-
District heating ($5k+/month revenue)
-
3. Future-Proof Scaling
-
Cluster 4+ units for 10MW+ farms
-
Supports 3nm ASICs (2025-ready)
 |
 |

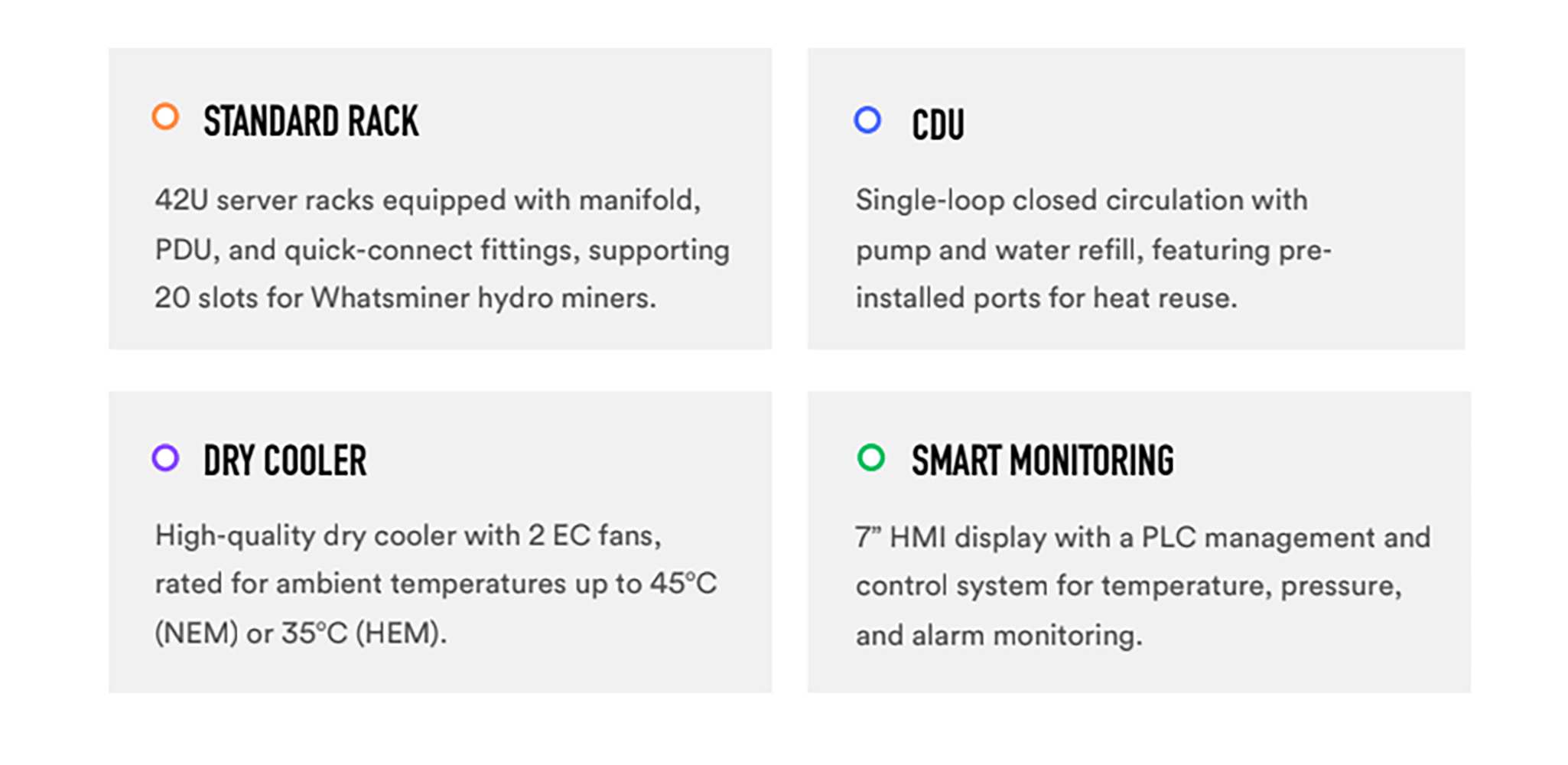

| Cooling Capacity | 200kW |
| Miner Capacity | 20 × M63/M63S 14 × Antminer U3S21EXPH |
| Dimension | Rack: 800 (L) mm × 1050 (W) mm × 2100 (H) mm CDU: 600 (L) mm × 1000 (W) mm × 2100 (H) mm Dry Cooler: 2890 (L) mm × 1670 (W) mm × 1934 (H) mm |
| Cooling Medium | Pure Water / Soften water + Antifreeze + Corrosion Inhibitor |
| External Cooler | Dry Cooler / Water Cooling Tower |
| Water Flow Rate | 20 m3/h |
| Water Inlet Temp | 45°C, @35°C ambient temperature |
| Flange Connection | DN57 |
| Max Power Load | 200kW |
| Power Supply | 3 Phase 380-480V 50/60Hz |
| Output Voltage | 3-Phase 380–480V AC, 50/60Hz, with individual circuit breakers |
| Monitoring & Control | 7” HMI display with PLC-based remote management and control system |
| Ambient Temp | -25°C~ 45°C |
| Design Pressure | 0.3 MPa |
| Extras | High-quality water pump / All stainless steel / EPDM hose / Quick connector |
| Dimensions | 80 × 105 × 210 cm |
|---|
