AP-H9 Hydro Cooling System Support 9 Antminer Hydro Miners Home Mining
AP-H9 Hydro Cooling System is designed to efficiently cool up to 9 hydro miners, Plug-and-Play Setup • Heat Recovery Ready, Handles continuous 24/7 operation, 30% smaller than commercial units.
$2,280.00 – $3,250.00
The price of miner changes from time to time. Price may be low or high. Please consult us for the specific price, we will give you the best price in the market.
Due to recent U.S. tariff changes on Chinese products, we offer DDP shipping for Antminer orders (MOQ: 30 pcs) to U.S. buyers. For smaller quantities, please contact our sales team for better options.
Order 2 or more machines to save on shipping costs! Contact our sales team now to secure the best rates.
- All miner include PSU
- Technical Support
- Low-value Declaration
- Machine detection
AP-H9 Hydro Cooling System: High-Efficiency Cooling for Mid-Scale Home Mining
*(9-Miner Capacity • Plug-and-Play Setup • Heat Recovery Ready)*
Built for Growing Home Mining Operations
✔ Supports 9x Antminer Hydro (S19/S21 Hydro & compatible models)
✔ 27kW Cooling Capacity – Handles continuous 24/7 operation
✔ Space-Optimized – 30% smaller than commercial units (fits garages/utility rooms)
✔ Whisper-Quiet – <52dB (quieter than a dishwasher)
Key Features
1. Professional-Grade Cooling
-
Closed-loop deionized water system (zero corrosion/scaling)
-
Dry cooler with 4 high-static pressure fans (auto-speed adjustment)
-
Maintains 50-58°C optimal ASIC temperatures
2. Heat Recovery Option
-
CDU (Cooling Distribution Unit) converts waste heat into:
-
65°C hot water for radiant heating
-
Pre-heated supply for pools/greenhouses
-
40-50% reduction in winter heating costs
-
3. Smart & Safe Operation
-
Leak-proof quick-connects (tool-free assembly)
-
Auto-shutoff sensors for dry-running protection
-
Wi-Fi monitoring (track temps/pump speed remotely)
Technical Specifications
| Component | Details |
|---|---|
| Dimensions | Cabinet: 70×45×90cm • Dry Cooler: 100×55×35cm |
| Power Draw | 150-250W (pump + fans) |
| Coolant Capacity | 15L deionized water (included) |
| Noise Level | 48-52dB (eco mode) → 55dB (full load) |
| Weight | 68kg (fully assembled) |
Why Choose AP-H9 Hydro Cooling System?
✅ Perfect Balance – More power than AP-H6 (6 miners), more compact than AP-H12 (12 miners)
✅ Future-Proof – Compatible with next-gen 3nm ASICs
✅ DIY-Friendly – Pre-assembled, <3hr setup time
✅ Dual-Season Use – Cooling in summer → heating in winter
Heat Recovery Applications
-
Home Heating (radiators/underfloor systems)
-
Aquaculture (shrimp/fish farms)
-
Commercial Spaces (small gyms, workshops)
Real-World Example: A German miner heats 120㎡ homes year-round using AP-H9’s waste heat.
 |
 |
|
Home Heating Provides an efficient and stable heating solution for residential spaces. |
Swimming Pool Heating Keeps swimming pools warm and comfortable year-round. |
 |
 |
|
Greenhouse Heating Provides an ideal heating environment to promote plant growth in greenhouses. |
Aquaculture System Heating Maintains a constant water temperature, supporting aquaculture activities. |

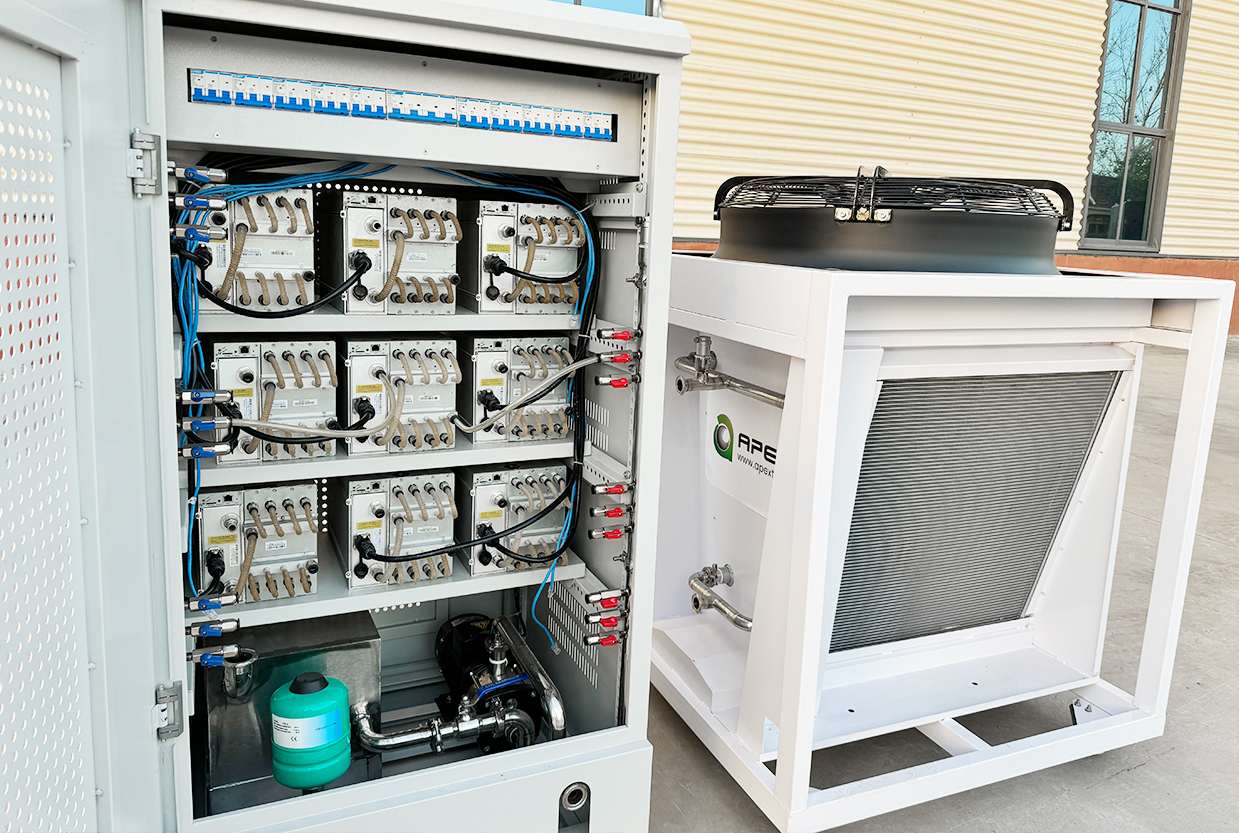

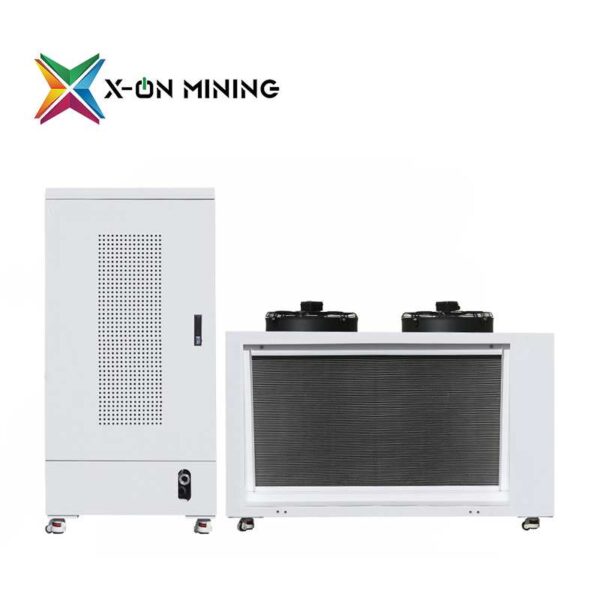

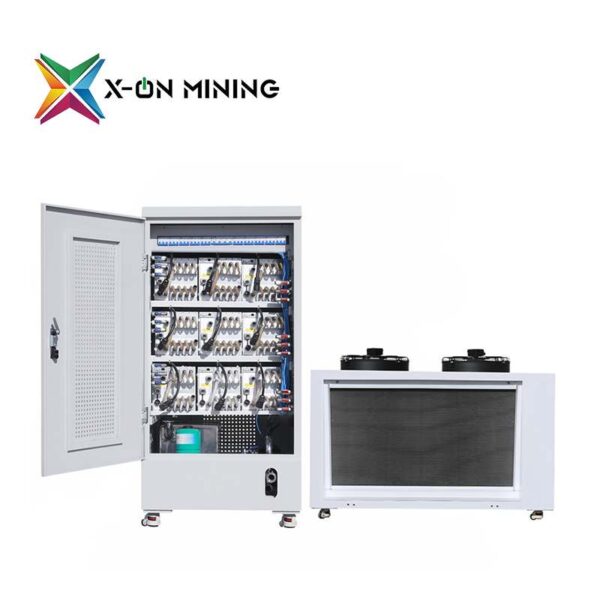

1. AP-H9 Tank
| Model | AP-H9 |
| Heat Dissipation Capacity | 50kW |
| Miners Capacity | 9* Antminer s19 / s21 hyd. |
| Dimensions | 80cm(L) * 79cm(W) * 160cm(H) (CABINET) |
| Weight | 155KG (CABINET) |
| Coolant | Pure Water / Soft water + Antifreeze + Corrosion Inhibitor |
| Max Inlet/Outlet Temp | 40 / 50 °C |
| External Cooling | Dry Cooler |
| Fluid Flow Rate | 4m³/h |
| Max Power Load | 50kW |
| Input Voltage | 3 Phase 380-415V 50/60Hz |
| Output Voltage | 3 Phase 380-415V 50/60Hz |
| Ambient Temp | -25°C ~ 45°C |
| Design Pressure | 0.3 MPa |
| Certification | CE |
| Extras | High-Quality Water Pump / All Stainless Steel / EPDM Hose / Quick Connector |

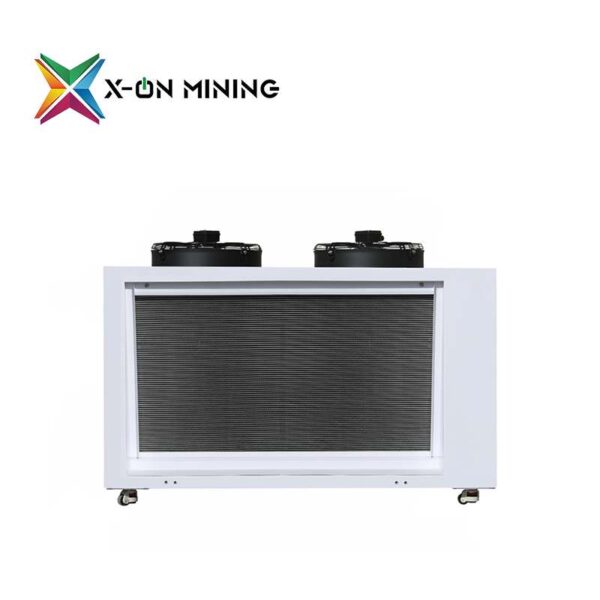

2. AP-H9 Dry Cooler
| Dimensions | 110cm(L) * 110cm(W) *140cm(H) |
| Weight | 170KG |
| Cooling Capacity | 50kW |
| Circulation Mode | Single Mode / Dual Mode |
| Input Voltage | 3 Phase 380-415V 50/60Hz |
| Output Voltage | 3 Phase 380-415V 50/60Hz |
| Cooling Medium | Pure Water / Soft water + Antifreeze + Corrosion Inhibitor |
| Weight | 155 kg |
|---|---|
| Dimensions | 80 × 79 × 160 cm |
| Options | Hydro-Cooling Only Version（Dual Fans）, Hydro-Cooling Only Version（Single Fan）, Hydro-Cooling+Heating Version |
