XON-H20-A28 Water Cooling Cabinet 154kW Support 28 Bitmain Hydro Miner
The XON-H20-A28 Water Cooling Cabinet can support 28 Bitmain S series water-cooled ASIC Miners, providing an efficient and highly efficient cooling system in the form of water cooling for Bitcoin mining.
The price of miner changes from time to time. Price may be low or high. Please consult us for the specific price, we will give you the best price in the market.
Due to tariff changes on Chinese products, we offer DDP shipping for ASIC miner orders (MOQ: 30 pcs) to buyers. For smaller quantities, please contact our sales team for better options.
Order 2 or more machines to save on shipping costs! Contact our sales team now to secure the best rates.
Facebook
Twitter
LinkedIn
Pinterest
VK
Reddit
- All miner include PSU
- Technical Support
- Low-value Declaration
- Machine detection

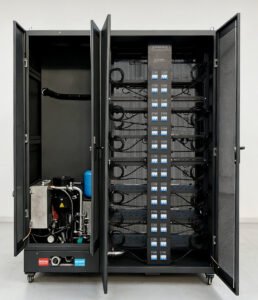

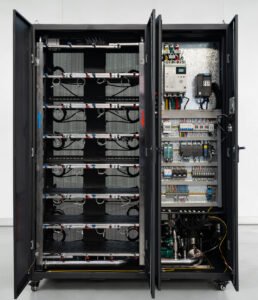

The XON-H20-A28 Water Cooling Cabinet is a high-performance water-cooling ASIC enclosure specifically designed for Bitmain’s water-cooling series Miners. It can accommodate up to 28 machines. This enclosure has passed CSA and CE certifications, facilitating quick deployment and installation worldwide, and is suitable for both home and commercial mining sites.
The XON-H20-A28 adopts a modular architecture, integrating the cabinet, CDU, power system, and cooling module into a flexible liquid cooling system. A single CDU can support multiple cabinets, thereby enabling an expandable water cooling solution and enhancing the energy efficiency of the machine.
This water-cooling radiator is compatible with the mainstream Bitmain water-cooling series mining machines. It can provide stable performance, reduce energy consumptio,n and offer a reliable water-cooling system. It is highly suitable for the expanding mining business needs.
Specifications
| Item | Value |
|---|---|
| Standard Component Parameters | |
| Model | AP-H20-A28 |
| Installed Units | 28 units |
| Installed Load | 154 kW |
| Vertical Multistage Pump Power | 4 kW |
| Makeup Pump Power | 0.2 kW |
| Dry Cooling Tower Fan Total Power | 8.3 kW |
| Closed Cooling Tower Fan Total Power | 1.1 kW |
| Closed Cooling Tower Spray Pump Power | 0.75 kW |
| System Operating Basic Parameters | |
| System Pipeline Pressure | 0.2–0.4 MPa |
| System Operating Temperature Range | 20–50 °C |
| Single-Machine Coolant Circulation Requirement | ≥ 0.5 m³/h |
| Total System Internal Coolant Requirement | ≥ 0.28 m³ |
| Electrical System Main Parameters | |
| Residual Current Protection Circuit Breaker | 400 A |
| Contactor | 9 A |
| Intermediate Relay | 24 V |
| Frequency Converter | 380 V |
FAQ About XON-H20-A28 Water Cooling Cabinet
1. Which types of ASIC Miners are this Water Cooling Cabinet suitable for?
It is applicable to the Bitmain S series water-cooled ASIC Miners, as well as some of the Wasminer water-cooled series ASIC Miners. For more details, please consult our sales representatives.
2. What is the power consumption of the components in the Water Cooling Cabinet?
XON-H20-A28 is a high-power water-cooled cabinet. The total power consumption of the entire machine is 154KW. The power consumption of the Vertical Multistage Pump is 4KW, the Makeup Pump’s power consumption is 0.2KW, the total power consumption of the Dry Cooling Tower Fan is 8.3KW, the total power consumption of the Closed Cooling Tower Fan is 1.1KW, and the power consumption of the Closed Cooling Tower Spray Pump is 0.75KW.
3. Does the XON-H20-A28 model come with coolant distribution manifolds (CDU)?
Yes, the XON-H20-A28 model comes with the necessary coolant distribution manifolds (CDU), and our engineers will guide you on how to install these components correctly.
4. Does the XON-H20-A28 model offer any data monitoring or integration functions?
It offers a remote control system based on PLC, which enables one-click operation and 24-hour monitoring functions. It can effectively automatically detect power supply, temperature, liquid flow, internal pressure of the machine and other abnormal conditions.
5. Which certifications has the XON-H20-A28 cabinet obtained?
It has obtained certifications for electrical safety standards such as CE, UL, and CSA, and complies with international safety regulations.
