924kW–1.4MW Hydro Cooling Solutions Support 168-252 Antminer
Hydro Cooling Solution

924kW–1.4MW Hydro Cooling Solutions Support 168-252 Antminer

924kW–1.4MW Hydro Cooling Solutions support 168–252 Antminer Hydro miners. High-density 28-machine cabinets with efficient cooling and power management for indoor mining facilities.

The price of miner changes from time to time. Price may be low or high.  Please consult us for the specific price, we will give you the best price in the market.

Trustpilot
asicminervalue

Due to tariff changes on Chinese products, we offer DDP shipping for ASIC miner orders (MOQ: 30 pcs) to buyers. For smaller quantities, please contact our sales team for better options.

Get VIP Price

Order 2 or more machines to save on shipping costs! Contact our sales team now to secure the best rates.

Categories , Tags , Brand:
Facebook
Twitter
LinkedIn
Pinterest
VK
Reddit
  • All miner include PSU
  • Technical Support
  • Low-value Declaration
  • Machine detection

924kW–1.4MW Hydro Cooling Solutions | High-Density Indoor Mining | 168–252 Miner Capacity

Our 924kW–1.4MW Hydro Cooling Solutions provide enterprise-grade mining infrastructure for medium to large-scale indoor operations. Utilizing a standardized 28-machine cabinet design arranged in compact layers, these systems accommodate between 168 and 252 Antminer S19/S21/S23 Hydro miners, featuring efficient hydro cooling and precise power management. Ideal for mining facilities seeking high-density deployment with reliable temperature control and operational stability.

Specs Overview (for reference)

Model 12position 20position 24position 28position 36position
Dimensions (mm) 900*1000*2200 1000*1000*1800 1000*1000*2000 1000*1000*2200 1550*1000*2000
Miner Capacity 12 20 24 28 36
Certification UL CSA CE
Input Voltage and Power Frequency (HZ) 380/220V 50
Est. Shipping Weight (KG) 350 190 220 258 322
Main Switch of Distribution Cabinet (A) 160 250 400 400 630
Rated Current (A) 144 240 288 336 432
Normal Power (KW) 4.9 4.9 4.9 4.9 4.9
Maximum Power (KW) 5.73 5.73 5.73 5.73 5.73
Current Rating Per Miner (A) 12 12 12 12 12
Flow of Current (Cubic Per Hour) 6 10 12 14 18
Cooling Tower Dimensions (mm) 1800*1050*2900 2000*1050*2900 2500*1050*2900 2600*1050*2900 3000*1250*3000
Noise from equipment (dB) 70 70 70 70 70
Heat Dissipation Method Closed cooling tower/Dry cooling tower/Plate heat exchanger/Immersion coil cooling

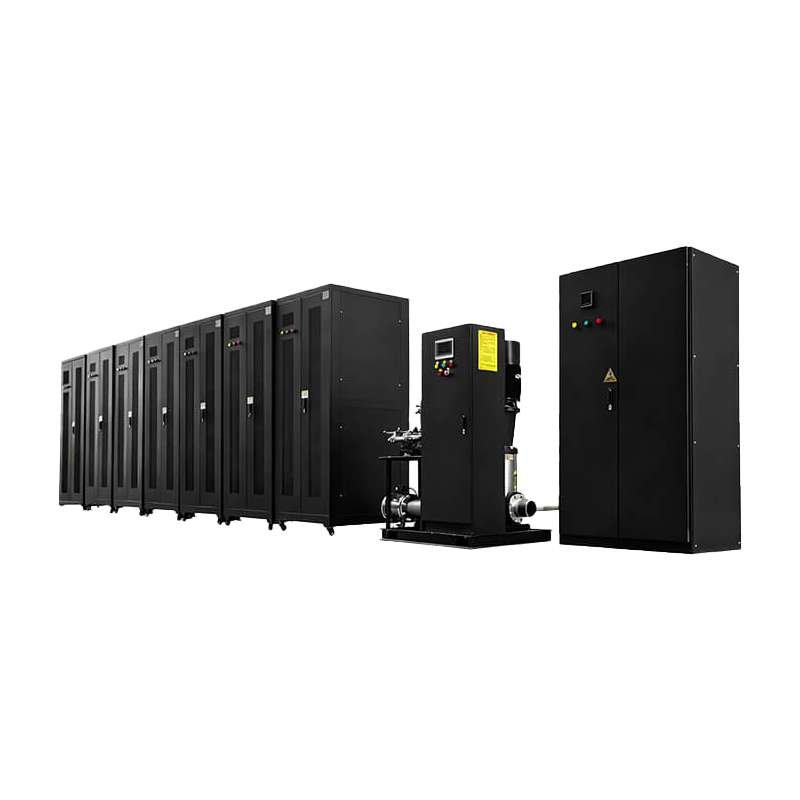

System Components

  • Hydro Cooling Cabinets – 28-miner capacity with 7-layer arrangement

  • Cooling Distribution Units (CDU) – Precision temperature control

  • Power Distribution Cabinets – Individual PDU switching per miner

  • Control System – Centralized monitoring and management

  • Cooling Towers – Scale with system size (2600×1050×2900mm for 28-miner)

Key Features

  • High-Density Design: 28 miners per cabinet maximizes space utilization

  • Modular Scalability: Expand from 168 to 252 miners with a consistent cabinet design

  • Efficient Hydro Cooling: Maintains optimal temperatures for maximum miner performance and lifespan

  • Precise Power Management: Individual 12A circuits with clear PDU switching

  • Industrial Certification: UL, CSA, and CE certified for safety and reliability

Customization Options

  • Cabinet Appearance: Electric-boiler style or distribution-cabinet design

  • Rack Configurations: 12, 20, 24, 28, or 36-machine layouts available

  • Cooling Methods: Closed cooling tower, Dry cooler, Plate heat exchanger, or Immersion coil

  • Deployment Flexibility: Mix cabinet sizes within the same facility

Why Choose Hydro Cooling Solutions?

  • Proven Density: 28-miner cabinet design optimized for space efficiency

  • Power Efficiency: Hydro cooling reduces overall energy consumption

  • Management Simplicity: Individual miner control simplifies maintenance

  • Investment Protection: Scalable design preserves infrastructure value during expansion

Target Audience: Medium to large mining operations, hosting providers, and enterprises establishing or expanding industrial-scale cryptocurrency mining facilities.
